PVC pipe machine for water supply and drainage from China manufacturer

Payment Terms:	T/T,L/C
Place of Origin:	Jiangsu, China (Mainland)

Product Detail

Model No.: WH

Production Capacity: 30 sets per year

Delivery Date: negotiable

Shaft Design: Double

material: PVC

Means of Transport: Ocean,Land

Packing: film or wooden case

Plastic Type: PVC

Brand Name: WUHE

1.Pipe diam:16-630mm
2.Capacity:optional
3.CE ISO9001 passed
4,price:17,000-66,000$

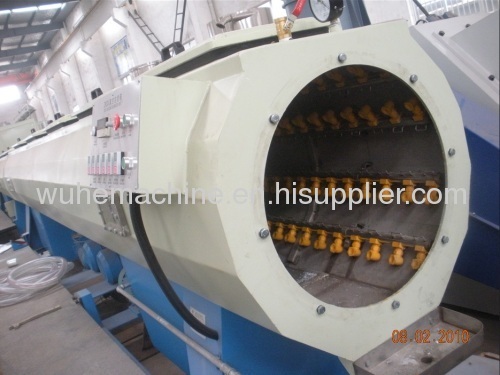

PVC pipe machine for water supply and drainage

Main Technical Parameters
Model	WH-63	WH-110	WH-160	WH-250	WH-315	WH-400	WH-630
MATCHED EXTRUDER	SJZ51/105	SJZ65/132	SJZ65/132	SJZ65/132	SJZ80/156	SJZ80/156	SJG92/188
OD RANGE(mm)	16-63	50-110	50-160	75- 250	110-315	200-400	315-630
LENGTH OF VACUUM CALIBRATOR TANK(mm)	4000	5000	6000	6000	6000	6000	6000
HAUL SPEED(m/min)	0.6-8	0.6-6	0.5-5	0.4-4	0.3-3	0.2-2.5	0.2-1.5
INSTALLED POWER(kw)	55	75	85	95	125	135	255
TOTAL LENGTH9(mm)	15000	17000	18000	20000	20500	28000	35000
